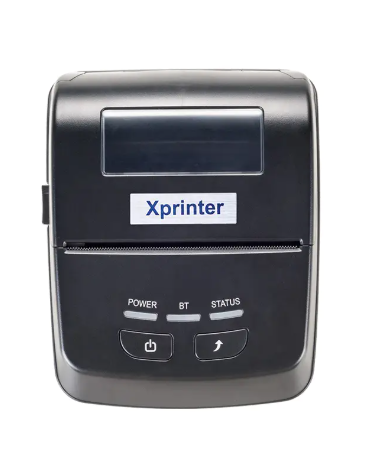

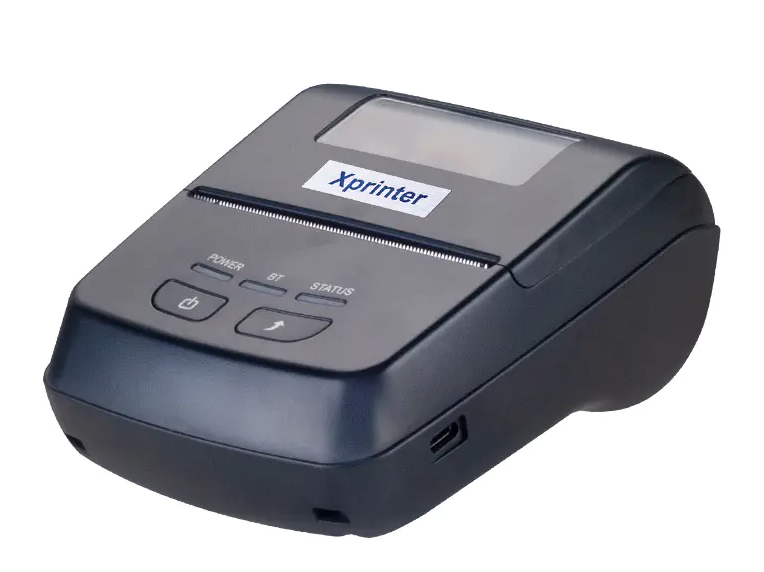

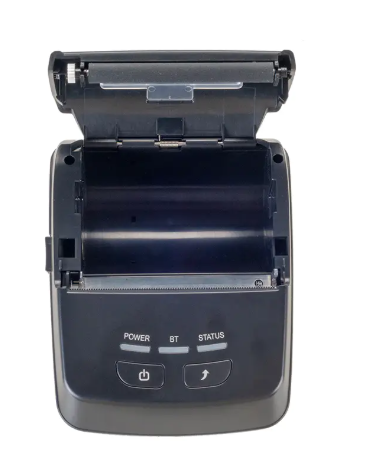

XPRINTER XP-P801A 3" (USB/BT ) MOBİL TAŞINABİLİR YAZICI

PDF indir

• Model XP-P801A
• Printing method Direct thermal
• Print width 72 mm
• Print speed 70 mm/s
• Paper width 80 mm
• Media roll diameter 50mm
• Performance Features Interfaces USB+Bluetooth(1+1)

  Model	XP-P801A
  Printing Features
  Printing method	Direct thermal
  Resolution	203 DPI
  Line spacing	3.75mm (Adjustable by commands)
  Print width	72 mm
  Print speed	70 mm/s
  Paper width	80 mm
  Media roll diameter	50mm
  Performance Features
  Interfaces	USB+Bluetooth(1+1)
  Input buffer	128 Kbytes
  NV Flash	4M Kbytes
  Emulation	ESC/POS
  Fonts/Graphics/Symbologies
  Character size	ANK,Font A:1.5×3.0mm(12×24 dots)Font B:1.1×2.1mm(9×17 dots) simplified/traditional Chinese:3.0×3.0mm(24×24 dots)
  Barcode types	1D:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 2D:QRCODE
  Extended character sheet	PC347(Standard Europe) / Katakana / PC850(Multilingual) / PC860(Portuguese) / PC863(Canadian-French) / PC865(Nordic) / West Europe / Greek / Hebrew / East Europe / Iran / WPC1252 / PC866(Cyrillic#2) / PC852(Latin2) / PC858 / IranII / Latvian / Arabic / PT151(1251)
  Physical Features
  Dimension	135*105*61.5mm (L*W*H)
  Weight	0.3 kg
  Compatible systems
  Systems	Windows/Android/iOS/Linux
  Power supply
  Battery	7.4V / 1800mAh
  Charging input	DC 5V / 2A
  Environmental Conditions
  Operation environment	0~45?,10~80%RH  no condensing
  Storage environment	-10~60 ?,≤10~90% RH  no condensing

•
